Longspan Shelving

Great Long Span Shelving Solutions
Longspan Shelving by Keylar Shelving
Longspan Shelving by Keylar Shelving
Longspan Shelving - Keylar Shelving
Longspan Shelving - Keylar Shelving

Please note: This product requires some assembly

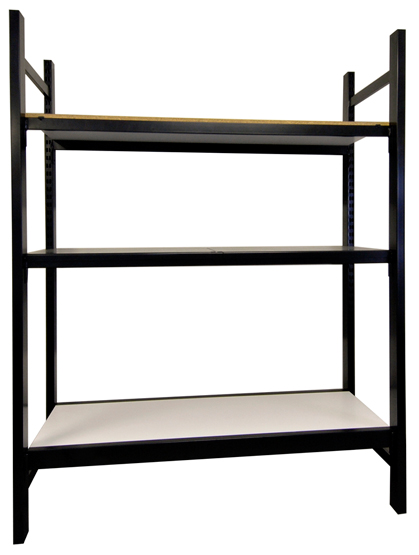

Keylar’s Long Span Shelving is a heavy duty system designed to give you flexibility in the storage of large or heavy items. Long Span is an attractive, durable, heavy duty, bolt free, adjustable shelving system that combined with its ease of installation and surprising economy fills a void in finding a storage solution. It is designed to bridge the gap between the more conventional shelving and pallet racking, and is ideal for supermarkets or any application where long clear spans are required. The shelving provides a high visibility of goods and easy access for order picking.

Long Span shelving is a hand loaded and unloaded system. Whilst mechanical devices such as stepped trolleys or elevating order pickers may be useful for gaining access to higher storage levels, the placement of products is a manual process.

key-feature
Key Features
  • Fully welded end frames.
  • End frames can be slotted on the inside to give a dressed look to the shelving.
  • Clip together installation.
  • Heavy duty 1.6mm steel shelf
  • Fast to assemble and dismantle.
  • 16mm white moisture resistant melamine boards or heavy duty 1.6mm steel shelves.
  • Have your shelving made to the size you want.
  • Quick lead times—normally no more than two weeks.
  • Long Span shelving has a fully welded end frame manufactured from an 80x40mm tube section to give you strength and stability .
  • The advantage with Keylar Long Span shelving is we can manufacture the shelving specifically to your specification for no additional cost – any height to 3000mm, any length to 3000mm, any depth to 1000mm.
  • There are 3 different sized beams, 50x20mm, 57x35mm and 80x40mm to suit your required weight loading. Beams come as either a step beam (where the board sits flush inside the beam) or a non-step beam (where the board sits on the beam.) A 1.6mm heavy duty steel shelf is also available as an alternative to board. Beams can be made to clip in on the front or the inside of the end frame.
  • Standard colours – Bright White, Oyster Grey, Matt Black or Magnolia Cream.
  • Any non-standard colour (a surcharge may apply)
good-to-know
Good to Know
  • Powder coated (45-50 microns thickness) steel
  • Standard colours – Bright White, Oyster Grey, Matt Black or Magnolia Cream.
  • Any non-standard colour (a surcharge may apply).
  • The beams are fully adjustable along the height, simply clip into the end frames to support a timber or 1.6mm thick steel shelf.
  • Stand the end frames and clip in one beam at a time starting at the base level of the end frames.
  • Clip in the remaining front and rear beams at the desired heights.
  • If using step beams lay the board on the step inside the beams.
  • If using non step beams lay the board directly on top of the beams.
  • If using steel shelves lay the steel shelf over the top of the beams.
care-instructions
Care Instructions

Wipe clean with a mild soapy solution.

Wipe dry with a clean cloth.

our-planet
Our Planet

The steel in this product may be recyclable. Please check the recycling rule in your community for recycling facilities.

Bay Height: Any height to 3000mm
Beam Length: Any length to 3000mm
Bay Depth: Any depth to 1000mm
Shelf Weight Loading: Will vary depending on the size and length of the beam
Indicative Weights:
50x20x2400mm – 270kg U.D.L.
57x35x2400mm – 440kg U.D.L.
80x40x2400mm – 960kg U.D.L.

U.D.L. Uniformly distributed load = the shelf, beam and bay capacities vary depend on the beam length. Indicative weights are as shown above and based on your shelving configuration.

The beams are fully adjustable along the height, simply clip into the end frames to support a timber or 1.6mm thick steel shelf.

  • Stand the end frames and clip in one beam at a time starting at the base level of the end frames.
  • Clip in the remaining front and rear beams at the desired heights.
  • If using step beams lay the board on the step inside the beams.
  • If using non step beams lay the board directly on top of the beams.
  • If using steel shelves lay the steel shelf over the top of the beams.

Get A Quote

  • Shelving Size:

  • 100% Australian Made & Owned

    Deal with the people who actually make the product

  • You can have what you want

    We manufacture to your specifications for no extra cost
